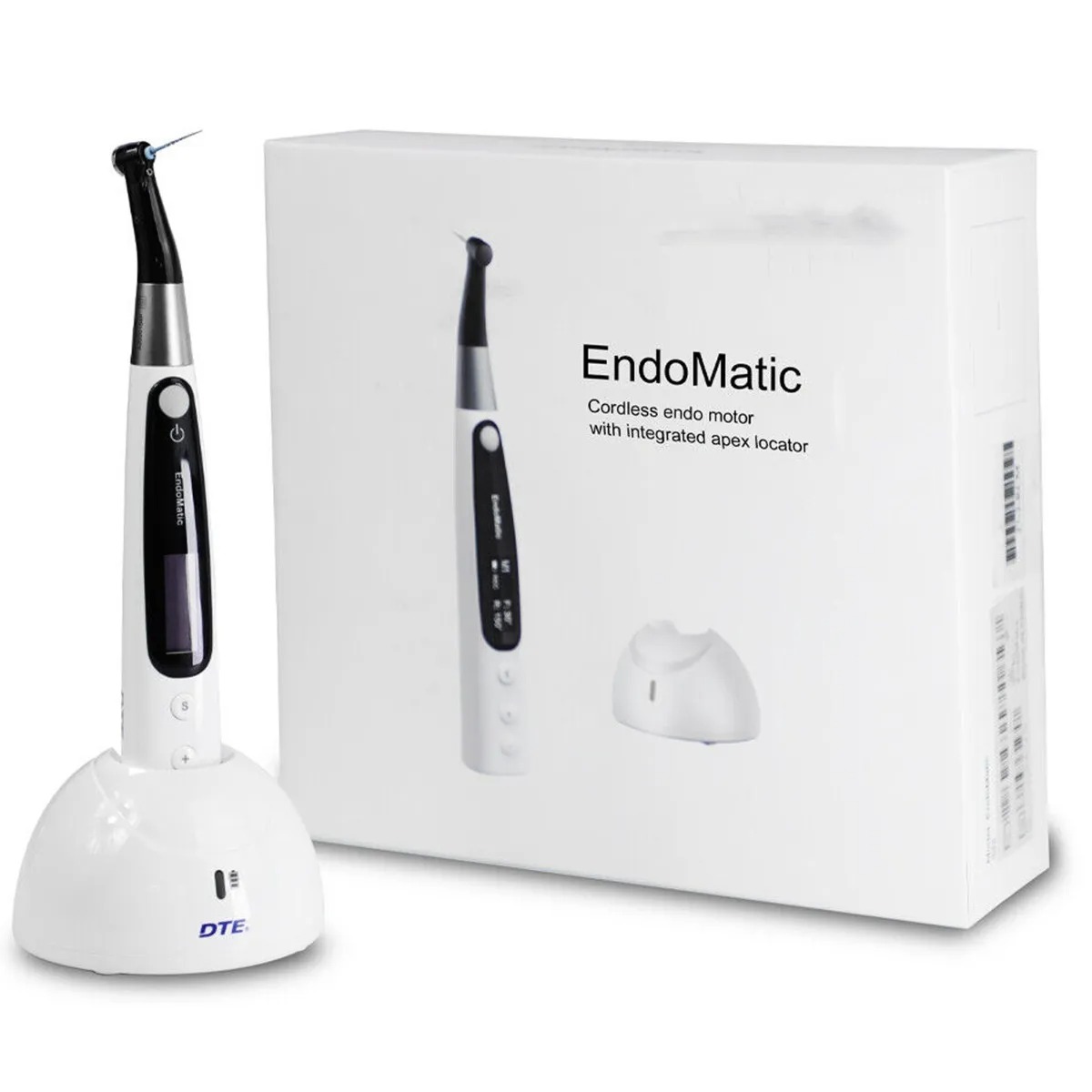

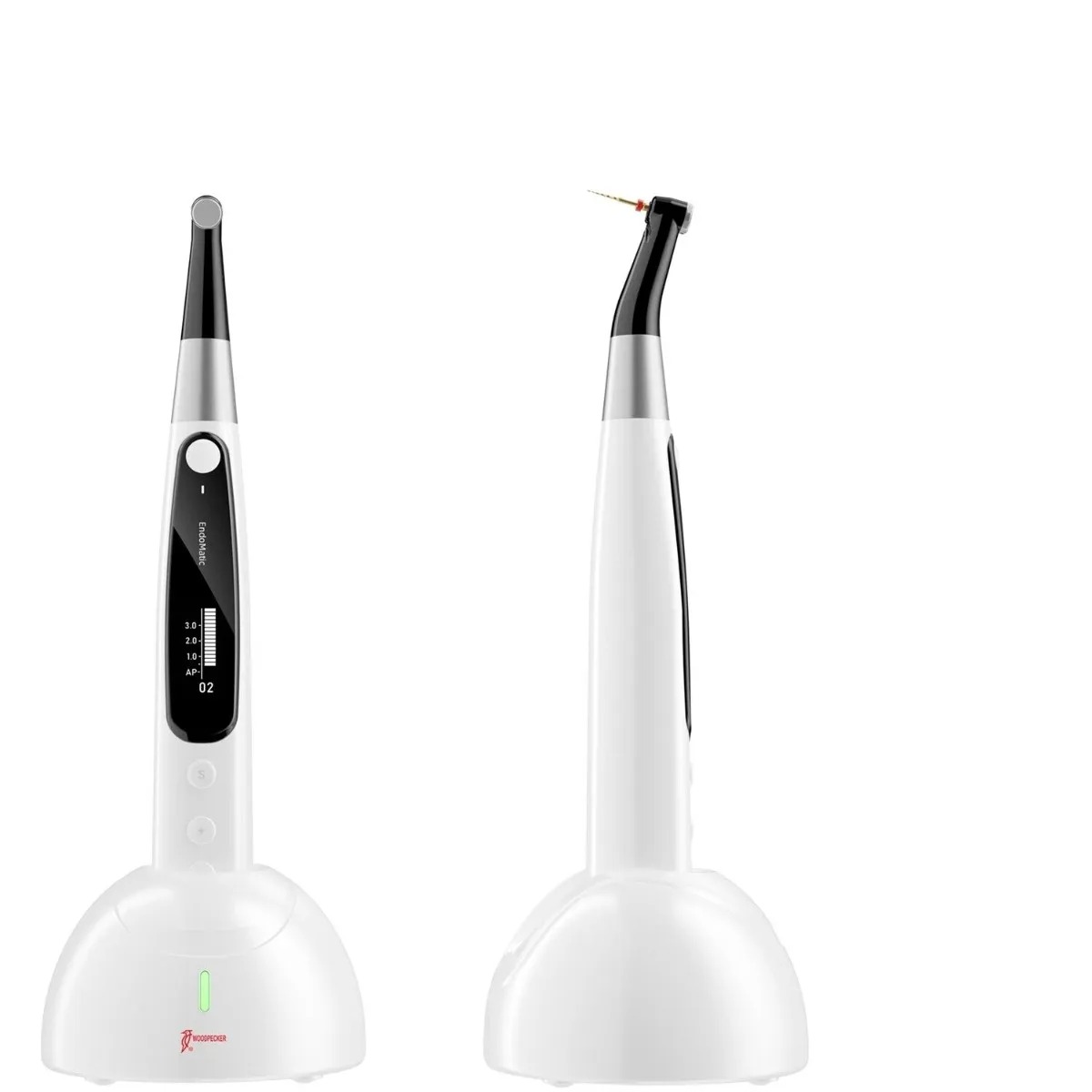

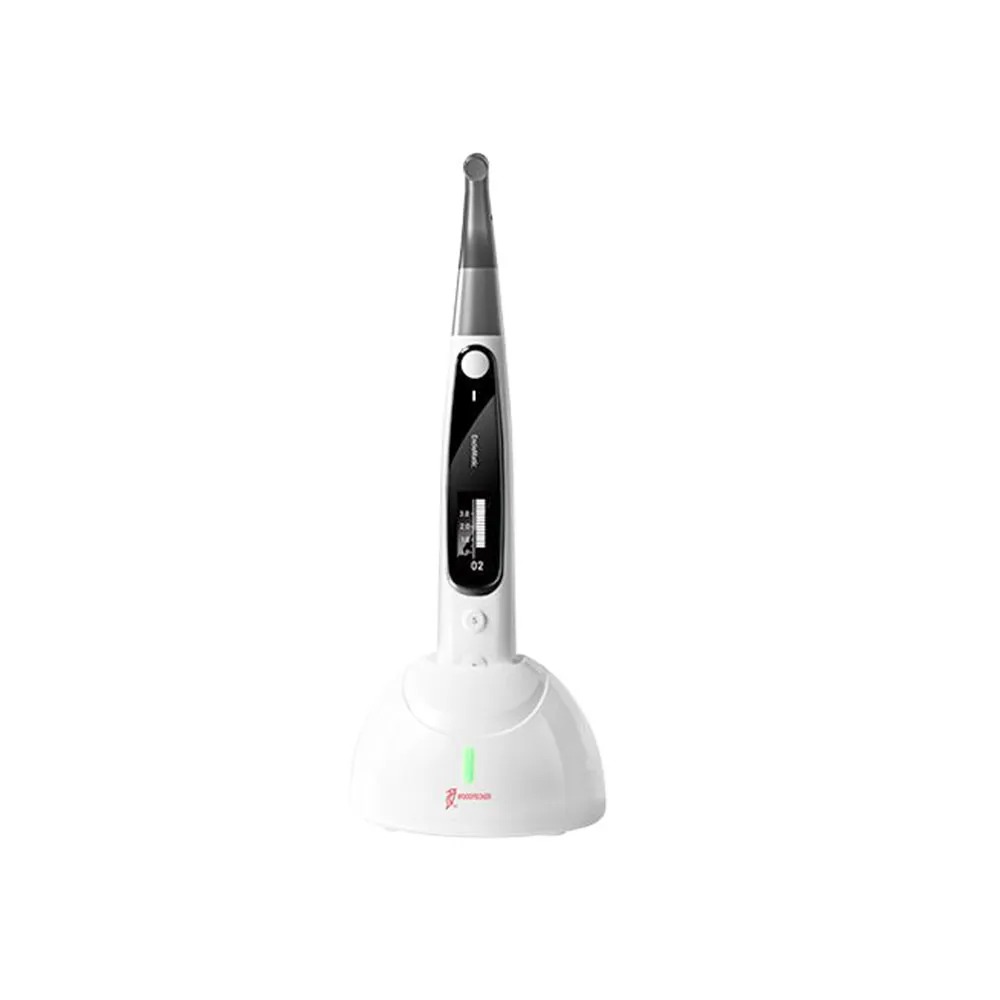

Endo Motor

An Endo Motor is a specialized dental device used during root canal treatments to mechanically drive endodontic files. It provides controlled, precise, and consistent movement—usually rotary or reciprocating—making it easier for dentists to clean and shape the root canal system. Most modern endo motors come with adjustable speed, torque settings, and safety features like auto-reverse to prevent file breakage.

Category:

Description

Key features

  • Battery (Lithium battery in motor handpiece) : 3.7V /2000mAh
  • Power adapter: Input (100V-240V 50Hz/60Hz 400mA Max), Output (DC5V/1A)
  • Torque range: 0.4Ncm-5.0Ncm
  • Speed range: 100rpm~1000rpm
  • Environment temperature: +5℃ ~ +40℃
  • Relative humidity: 30% ~ 75%
  • Atmospheric pressure: 70kPa ~ 106kPa
  • Display Screens for 5 Operation Modes and Standby
  • CW Mode: The motor handpiece rotates forward 360º, clockwise direction. Used
  • CCW Mode: The motor handpiece rotates counterclockwise direction only. This mode is used to inject calcium hydroxide and other mendicant. When this mode is being used, double-beep sounds continuously
  • REC Mode: Reciprocating mode.
  • ATR Mode: Adaptive Torque Reverse function
  • EAL Mode: This mode is for canal measurement. The motor handpiece does not run in this mode.
